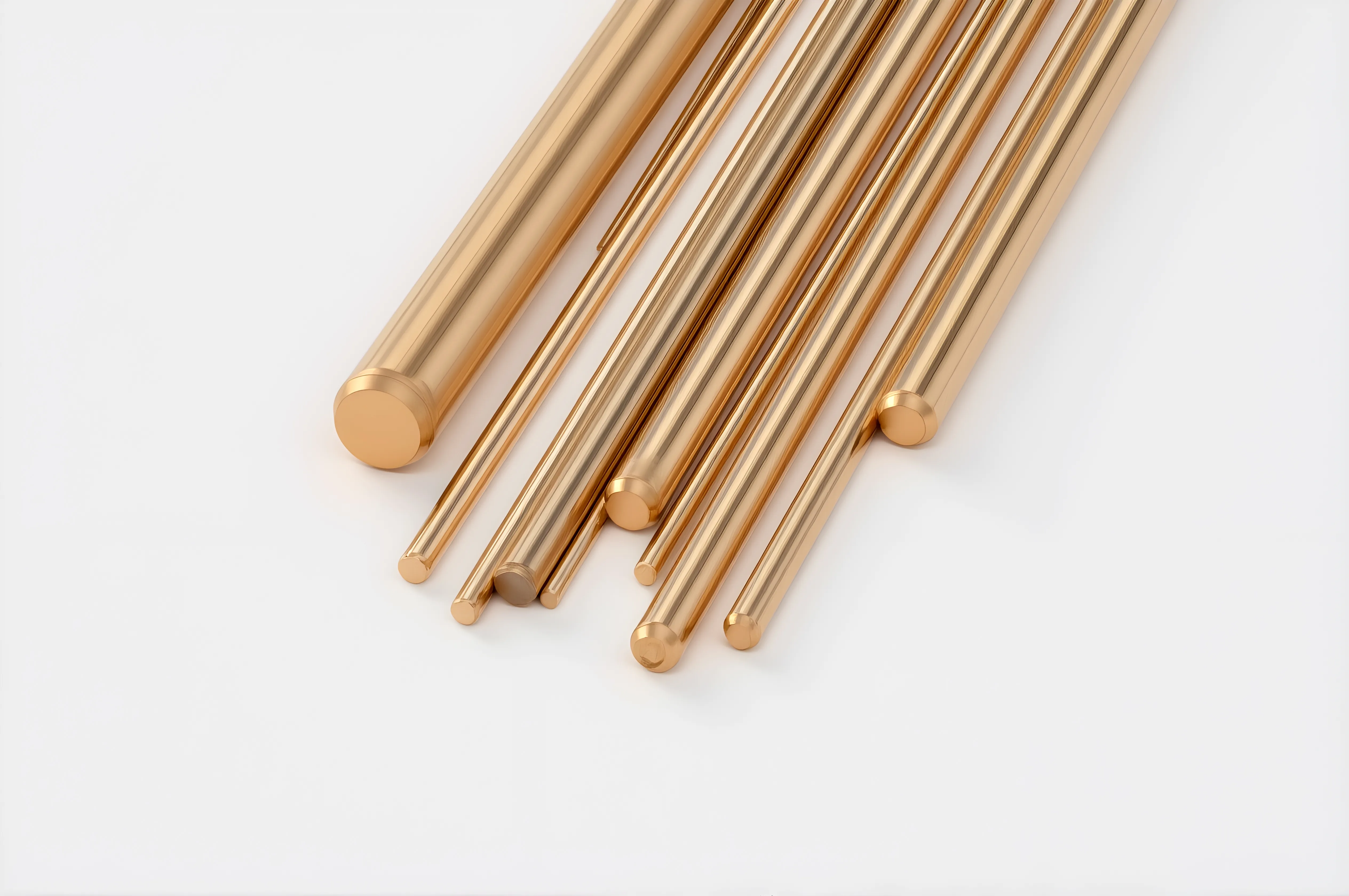

Copper Beryllium Rod



EN: CuBe2

UNS: C17200

Standards: ASTM B196 (rods/bars)

jinjiang@kinkou.cn

Tel: 008613773014250

Whatsapp: 8613773014250

Copper Beryllium Rod
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

Quick Detail:
C17200 alloy is premium, non-ferrous alloy products renowned for their exceptional combination of properties, making them indispensable in high-performance engineering applications.



Key Characteristics & Advantages:
1. Exceptional Strength & Hardness: Through a controlled precipitation hardening (age hardening) heat treatment process, BeCu rods achieve very high tensile strength (up to 1500 MPa / 220 ksi) and Rockwell hardness (up to C45), surpassing virtually all other copper alloys and rivaling many steels.
2. Excellent Electrical & Thermal Conductivity: While exceptionally strong, BeCu retains significant electrical conductivity (typically 22-28% IACS) and thermal conductivity, outperforming most high-strength materials. This makes it ideal for electrically critical components requiring structural integrity.
3. Superb Fatigue Resistance & Spring Properties: BeCu rods exhibit outstanding resistance to fatigue failure and possess excellent spring characteristics (high elastic limit, low stress relaxation). They maintain their shape and function under repeated cyclic stresses.
4. Outstanding Corrosion Resistance: Resistant to stress corrosion cracking, seawater corrosion, and a wide range of industrial chemicals and atmospheres, comparable to many corrosion-resistant copper alloys.
5. Non-Sparking & Non-Magnetic: BeCu is inherently non-sparking (safe for use in explosive environments) and non-magnetic, crucial for sensitive electronic and marine applications.
6. Good Formability & Machinability: In the solution annealed (soft) condition, BeCu rods can be readily formed and machined. Subsequent heat treatment achieves peak strength/hardness.
7. Excellent Wear Resistance: The hardened alloy offers superior resistance to galling and wear.



Chemical composition (wt,%)：

Be Ni+Co Ni+Co+Fe Al Si Cu
1.8-2.0 0.2 <0.6 ＜0.2 ＜0.2 Rem.



Physical and Mechanical property：

Temper Size Tensile Strength Yield Strength Elongation Hardness Eletric Conductivity
inch mm ksi MPa ksi MPa min.%,4D HV0.5 HRB HRC %, IACS
TB00
Solid Solution Treatment		 ALL ALL 60-85 410-590 20 140 20 80-162 45-85 - 15-19
TD04
Solid Solution Treatment & Cold Process Hardning		 ≤3/8 ≤10 90-130 620-900 75 520 8 175-250 88-103 -
>3/8-1 >10-25.4 90-125 620-860 88-102 -
>1-3 >25.4-76.2 85-120 590-830 88-101 -
TF00
Precipitation Heat Treatment		 ALL ALL 165-200 1140-1380 145 1000 4 337-387 - 36-42 22-28
TH04
Precipitation Hardening		 >3/8-1 >10-25.4 185-220 1240-1580 155 1070 2 345-440 - 38-44
>1-3 >25.4-76.2 175-215 1210-1480 145 1000 4 - 37-44



Core Applications:

BeCu rods are widely used as raw material for machining critical components in:
Aerospace & Defense: Bearings, bushings, fasteners, landing gear components, missile parts.

Electronics & Telecommunications: Electrical contacts, connectors, relays, switchgear components, springs in microelectronics, wafer probe pins.

Oil & Gas / Petrochemical: Drilling equipment, Non-sparking tools (wrenches, hammers), valves, pump components for hazardous environments.

Industrial Machinery: High-stress bushings, bearings, springs, diaphragms, plastic injection molds (cores, cavities, ejector pins).

Automotive: Sensors, connectors, advanced braking system components, transmission parts.

Robotics & Precision Instruments: High-reliability springs, sensor components, wear parts.
